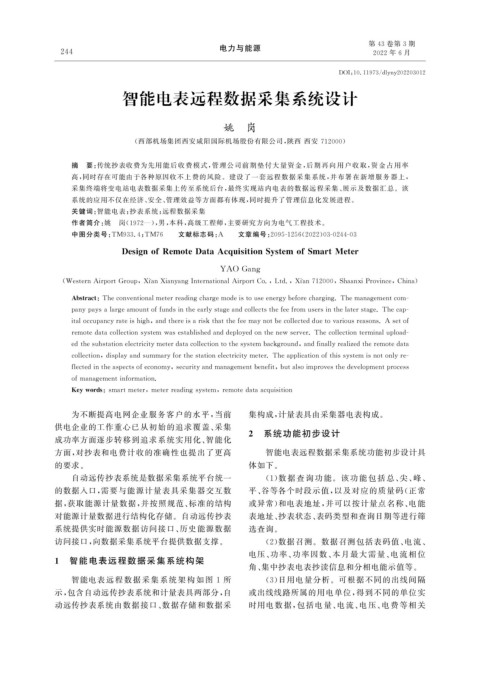

第 43 卷第 3 期
                                                       电力与能源
               2 4 4                                                                         2022 年 6 月

                                                                                     DOI : 10.11973 / dl y n y 202203012

                               智能电表远程数据采集系统设计



                                                        姚 岗

                                  ( 西部机场集团西安咸阳国际机场股份有限公司, 陕西 西安 712000 )

                   摘   要: 传统抄表收费为先用能后收费模式, 管理公司前期垫付大量资金, 后期 再 向 用 户 收 取, 资 金 占 用 率
                   高, 同时存在可能由于各种原因收不上费的风险。建设了一套远程数据采集系统, 并布署在新增服务器上,
                   采集终端将变电站电表数据采集上传至系统后台, 最终实现站内电表的数据远程采集、 展示及数据汇总。该
                   系统的应用不仅在经济、 安全、 管理效益等方面都有体现, 同时提升了管理信息化发展进程。
                   关键词: 智能电表; 抄表系统; 远程数据采集
                   作者简介: 姚   岗( 1972 —), 男, 本科, 高级工程师, 主要研究方向为电气工程技术。
                   中图分类号: TM933.4 ; TM76   文献标志码: A   文章编号: 2095-1256 ( 2022 ) 03-0244-03
                               Desi g nofRemoteDataAc q uisitionS y stemofSmartMeter


                                                       YAOGan g
                ( WesternAir p ortGrou p , Xi'anXian y an g InternationalAir p ortCo. , Ltd. , Xi'an712000 , ShaanxiProvince , China )

                  Abstract : Theconventionalmeterreadin g char g emodeistouseener gy beforechar g in g .Themana g ementcom-
                  p an yp a y salar g eamountoffundsintheearl y sta g eandcollectsthefeefromusersinthelatersta g e.Theca p -
                  italoccu p anc y rateishi g h , andthereisariskthatthefeema ynotbecollectedduetovariousreasons.Asetof
                  remotedatacollections y stem wasestablishedandde p lo y edonthenewserver.Thecollectionterminalu p load-
                  edthesubstationelectricit ymeterdatacollectiontothes y stemback g round , andfinall y realizedtheremotedata
                  collection , dis p la yandsummar y forthestationelectricit ymeter.Thea pp licationofthiss y stemisnotonl y re-
                  flectedintheas p ectsofeconom y , securit y andmana g ementbenefit , butalsoim p rovesthedevelo p ment p rocess
                  ofmana g ementinformation.
                  Ke ywords : smartmeter , meterreadin gs y stem , remotedataac q uisition


                   为不断提高电网企业服务客户的水平, 当前                        集构成, 计量表具由采集器电表构成。
              供电企业的工作重心已从初始的追求覆盖、 采集
              成功率方面逐步转移到追求系统实用化、 智能化                          2  系统功能初步设计
              方面, 对抄表和电费计收的准确性也提出了更高                               智能电表远程数据采集系统功能初步设计具
              的要求。                                             体如下。
                   自动远传抄表系统是数据采集系统平台统一                             ( 1 ) 数据 查 询 功 能。该 功 能 包 括 总、 尖、 峰、
              的数据入口, 需要与能源计量表具采集器交互数                           平、 谷等各个时段示值, 以及对应的质量码( 正常
              据, 获取能源计量数据, 并按照规范、 标准的结构                        或异常) 和电表地址, 并可以按计量点名称、 电能
              对能源计量数据进行结构化存储。自动远传抄表                            表地址、 抄表状态、 表码类型和查询日期等进行筛
              系统提供实时能源数据访问接口、 历史能源数据                           选查询。

              访问接口, 向数据采集系统平台提供数据支撑。                               ( 2 ) 数据召测。数据召测包括表码值、 电流、
                                                               电压、 功率、 功率因数、 本月最大需量、 电流相位
              1  智能电表远程数据采集系统构架
                                                               角、 集中抄表电表抄读信息和分相电能示值等。
                   智能电表远程数据采集系统 架 构 如 图 1 所                        ( 3 ) 日用电量分析。可根据不同的出线间隔
              示, 包含自动远传抄表系统和计量表具两部分, 自                         或出线线路所属的用电单位, 得到不同的单位实
              动远传抄表系统由数据接口、 数据存储和数据采                           时用电数据, 包括电量、 电流、 电压、 电费等相关
